Stainless Steel Covers are elements that close drainage channels and troughs, protecting them from contaminants. They ensure durability, aesthetics, and resistance to corrosion and chemicals.

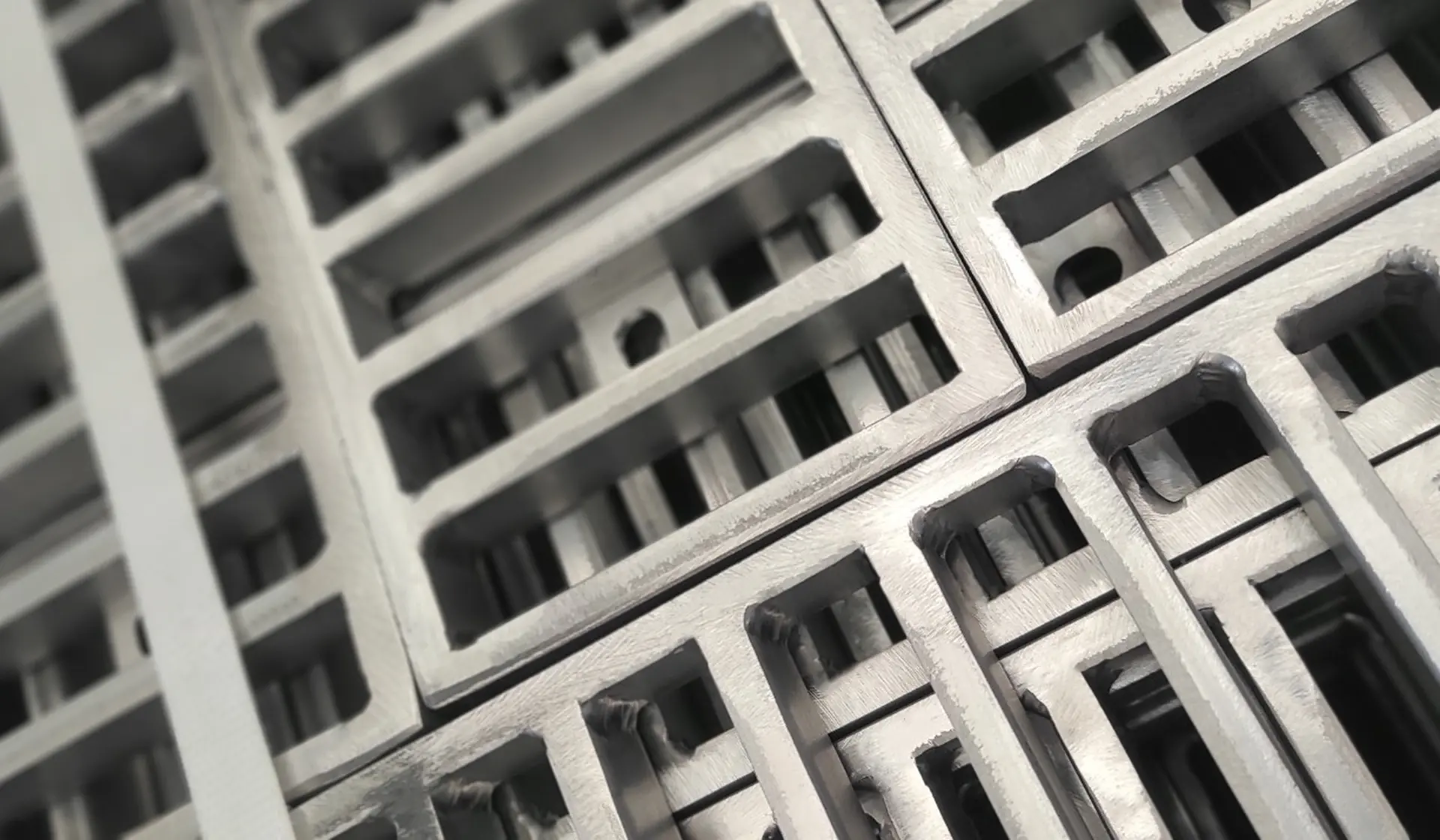

Stainless Steel Grates are perforated elements covering drainage channels, allowing free water flow. They combine high strength with corrosion resistance and easy hygiene maintenance.
Stainless steel covers and grates are used in linear and point drainage systems, such as troughs and floor drains (bodenablauf/ablauf). Depending on the needs, they include:
These solutions are ideal for the food industry, confectionery plants, smokehouses, breweries, and wineries. They are also used in pharmaceutical and chemical production, processing plants, production halls, as well as slaughterhouses and meat processing facilities.
Dimensions and designs can be customized to specific installations while maintaining hygienic requirements and sanitary standards.

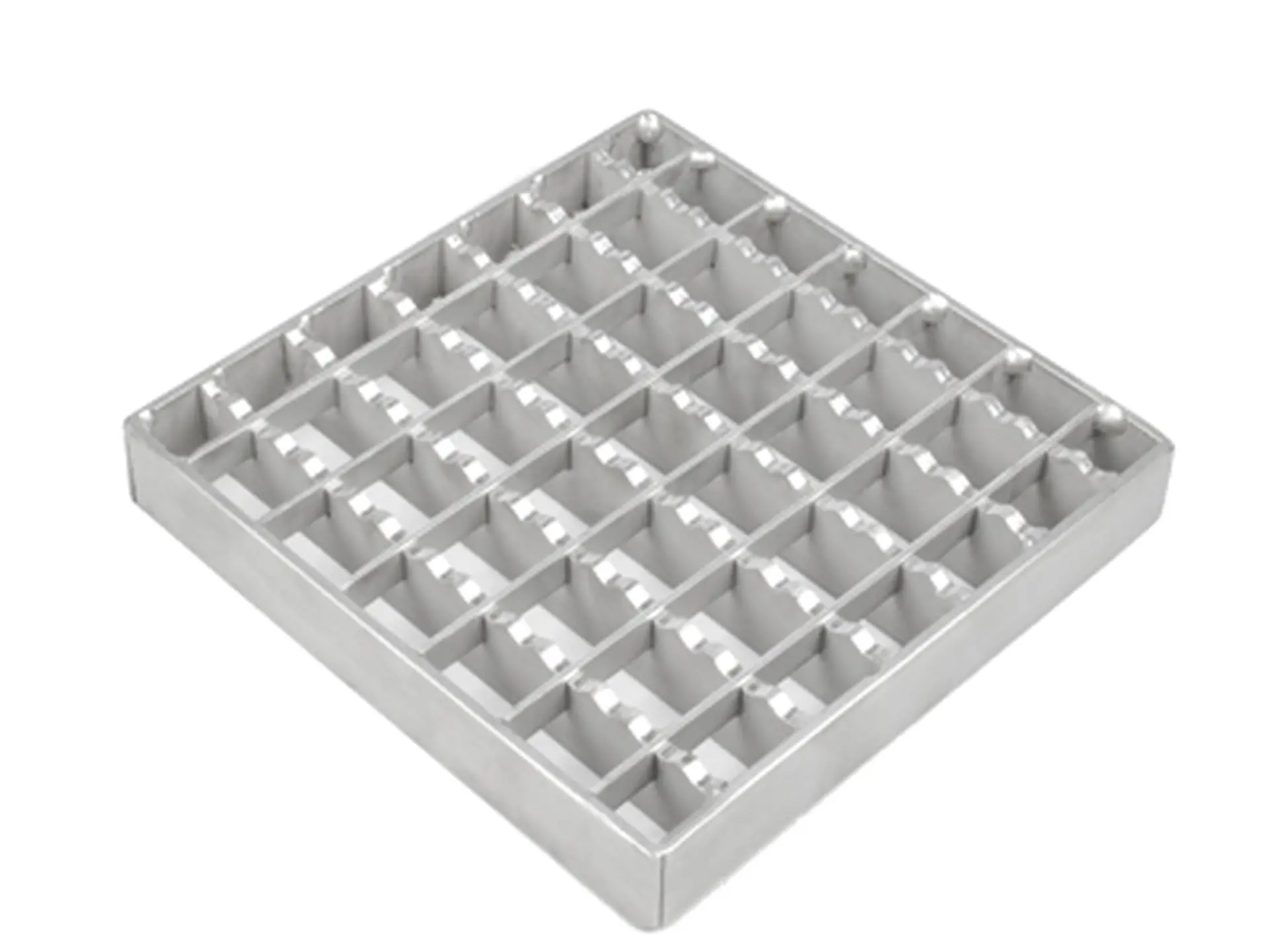

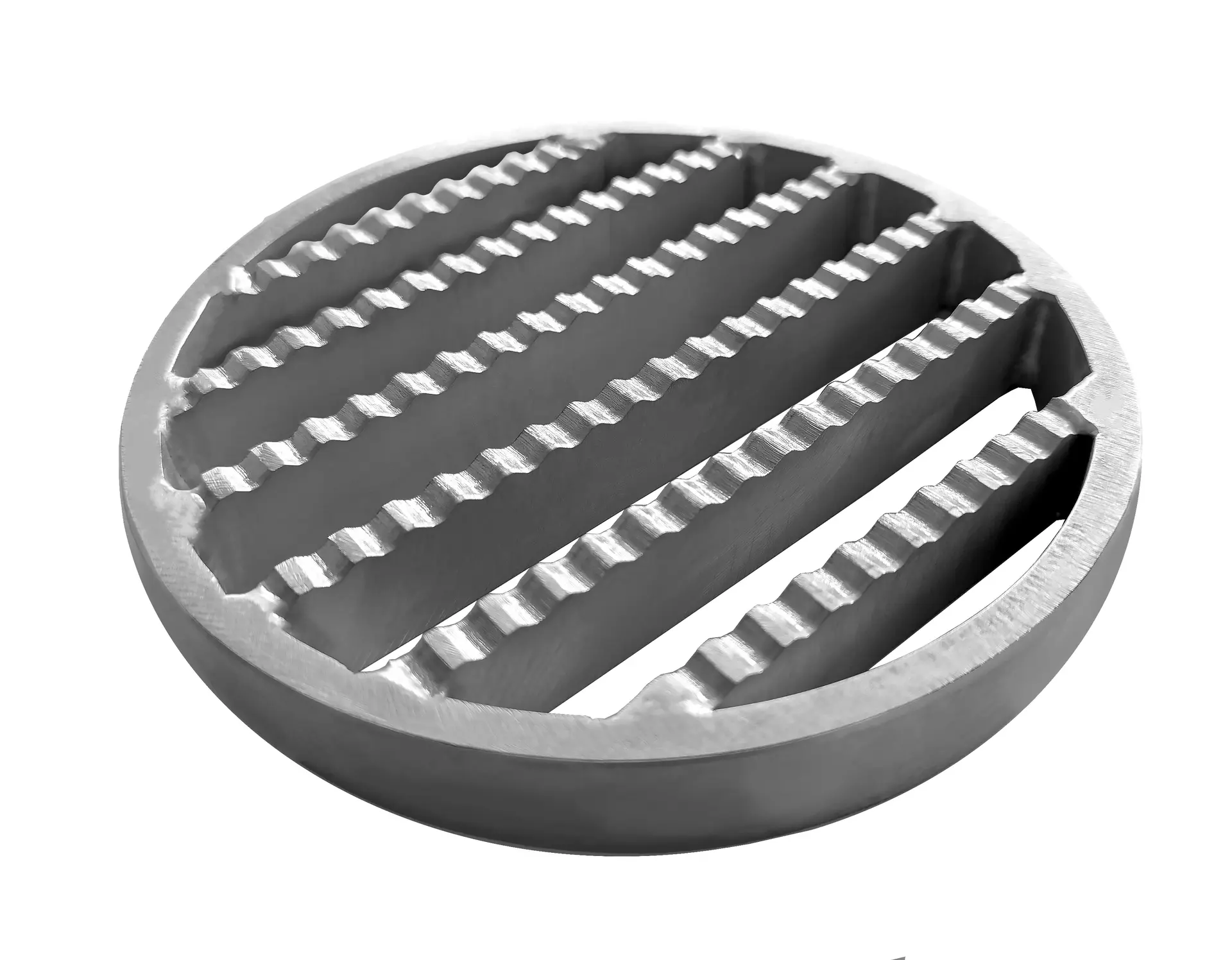

The anti-slip grate is used in areas where safety is critical. It performs well in environments exposed to moisture, grease, and intensive cleaning.
The construction made of flat bar 25x3 mm ensures good grip and reduces the risk of slipping. At the same time, it allows free drainage of water and contaminants, minimizing the risk of clogging the drainage system.
The grate is made of AISI 304 stainless steel, and upon request, also AISI 316. It offers high resistance to intensive use and chemical agents. The L15 load class indicates suitability for light loads, typical for pedestrian traffic.
This solution is used in facilities requiring high hygiene standards and workplace safety.
Applications:

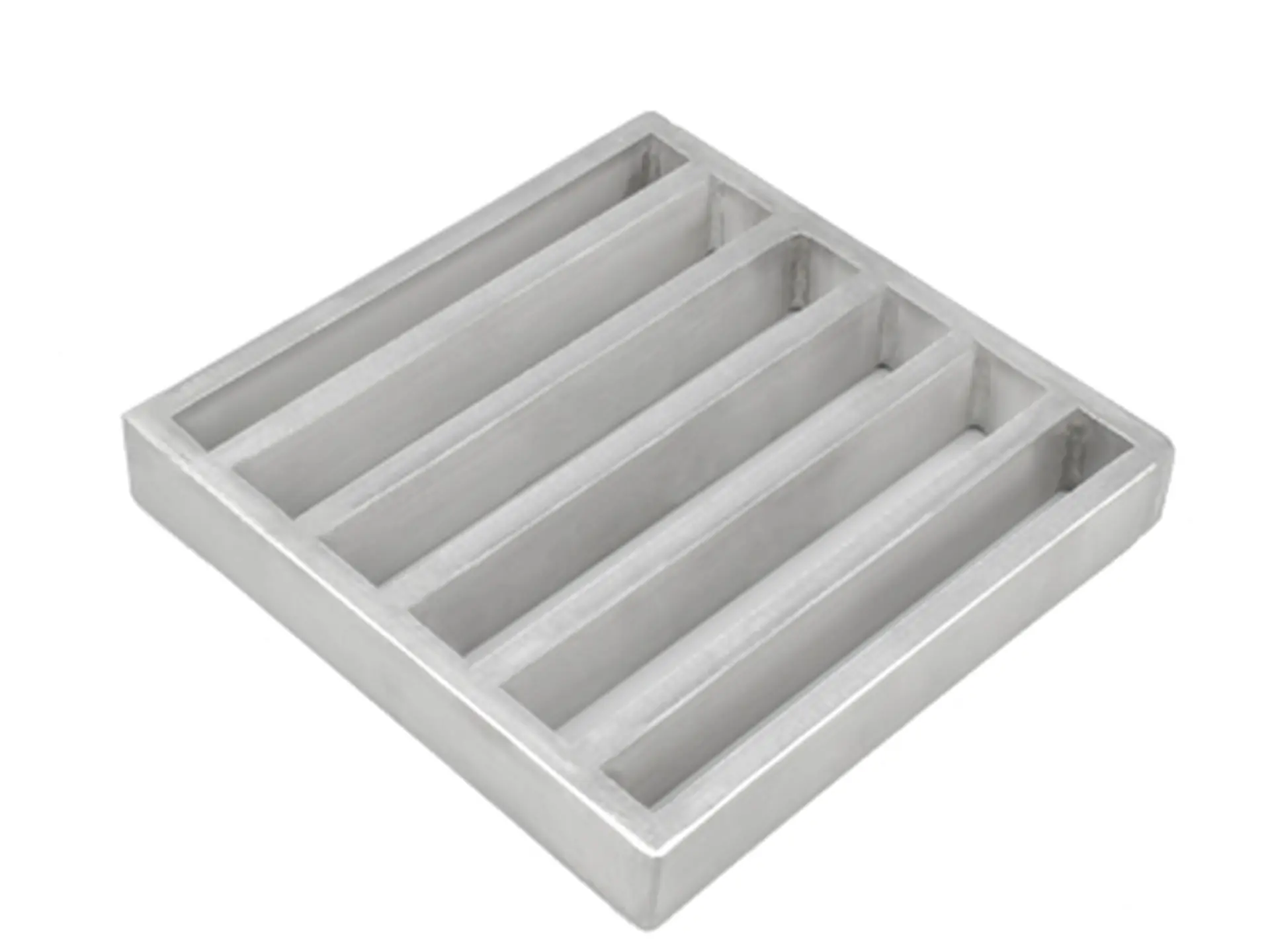

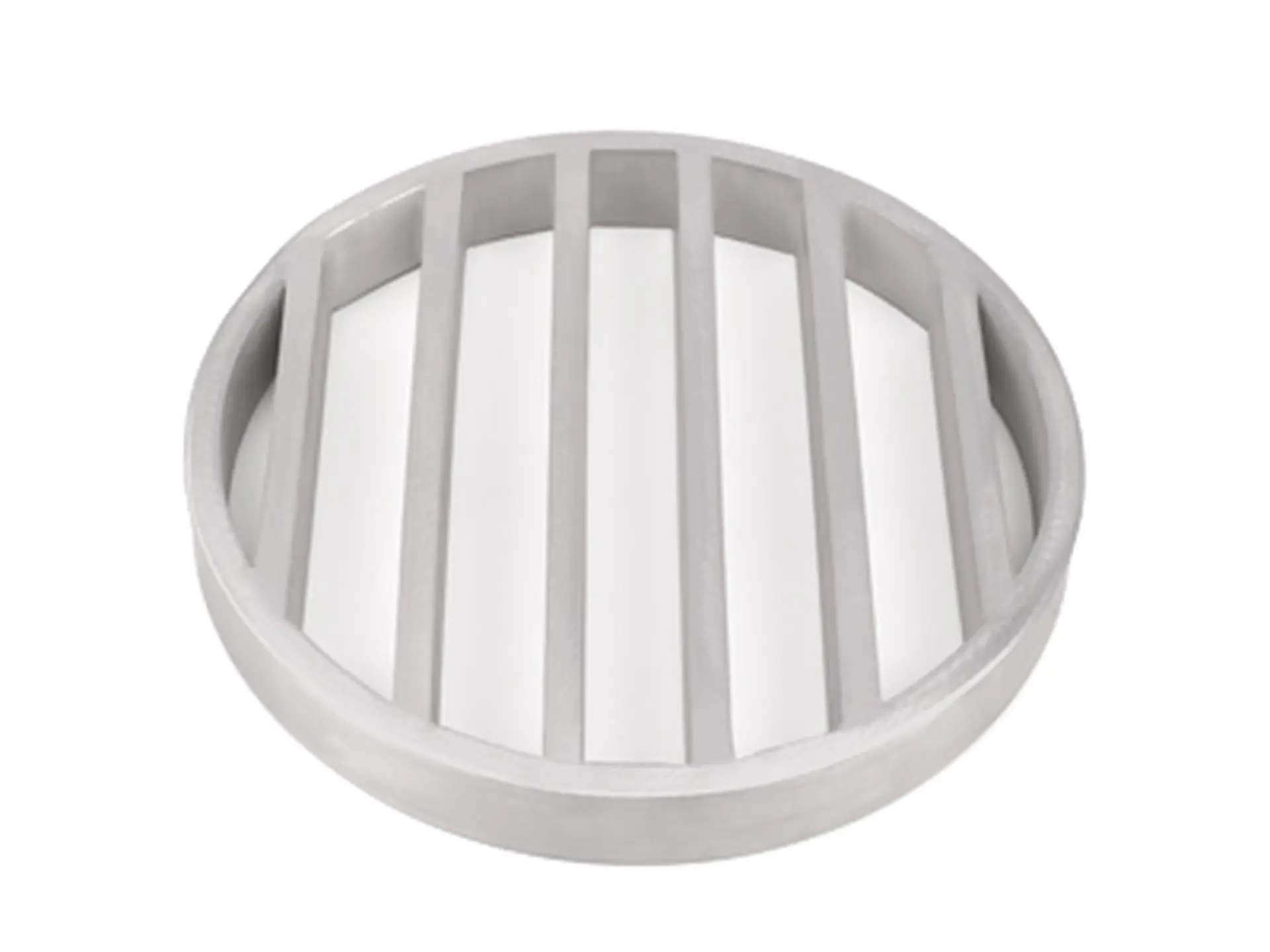

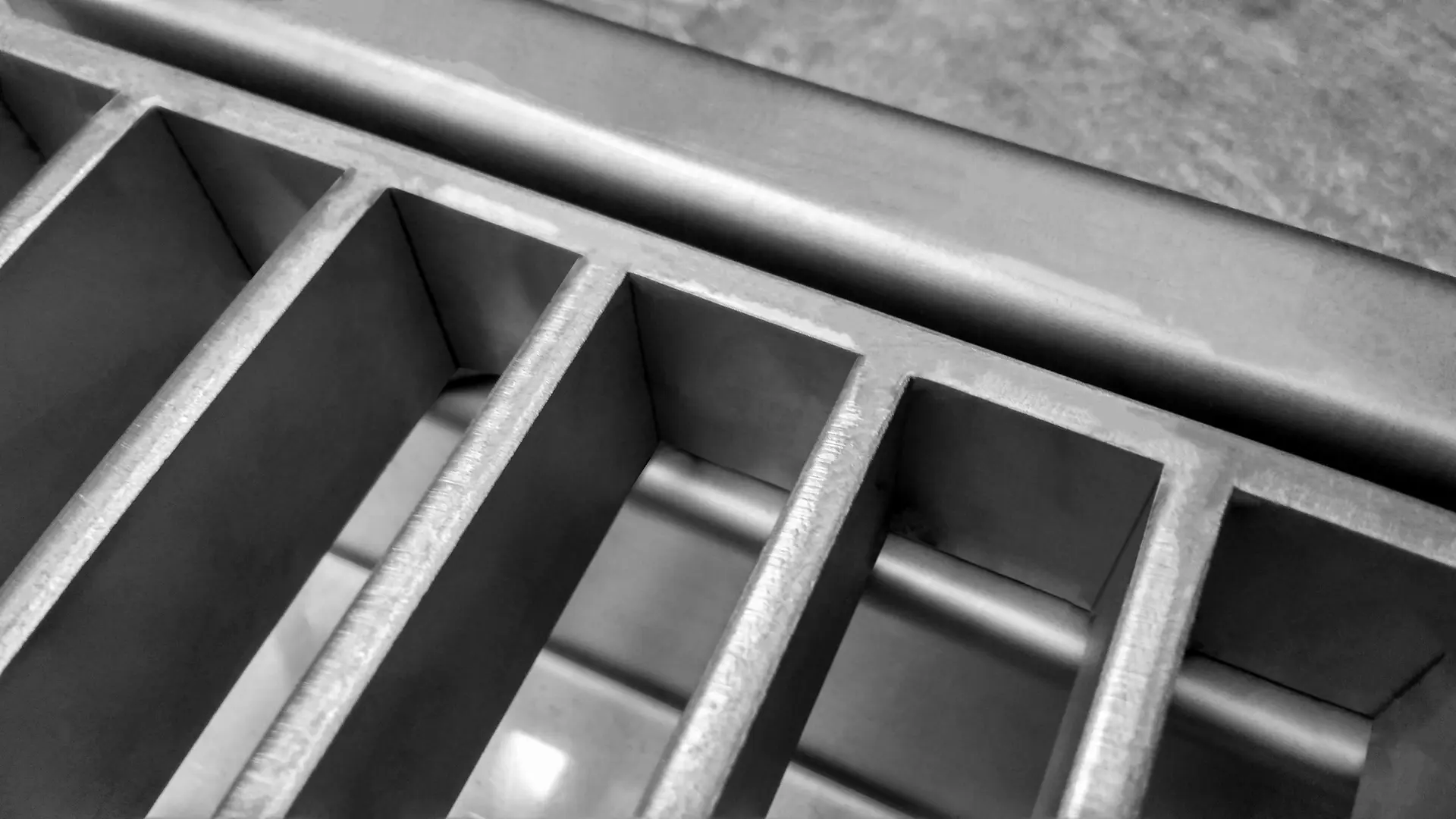

The 25x8 mm stainless steel ladder grate is used in industrial stainless steel drainage systems. It excels in environments requiring high hygiene standards and resistance to heavy use. It is utilized in the food, dairy, meat, brewing, and wine industries, as well as in production and storage facilities.
The grate is made of AISI 304 stainless steel, and upon request, also AISI 316. The M125 load class indicates suitability for medium loads. This makes the grate ideal for production halls, technical rooms, and industrial back areas. The 25x8 mm cross-section ensures effective drainage, high flow capacity, and resistance to chemicals and mechanical damage.
The ladder design facilitates water and contaminant drainage from the floor while enabling quick cleaning and maintaining high hygiene levels. The structure allows for easy installation and removal, streamlining maintenance and inspection of drainage systems.

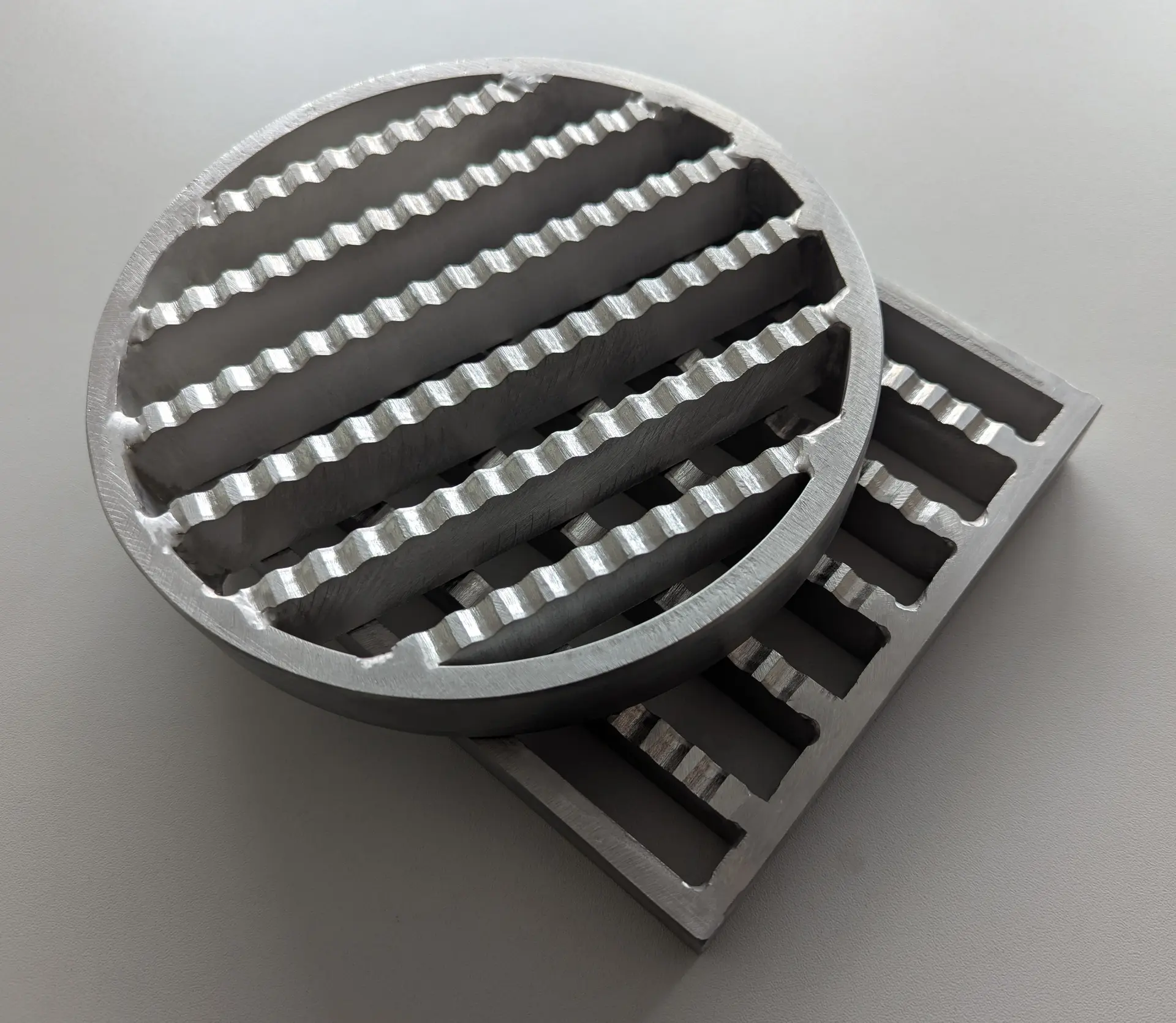

In its anti-slip version, the 25x8 mm ladder grate is used in areas exposed to moisture and grease. It performs well where detergents are present, and safety of movement is crucial. This variant ensures stability and reduces the risk of slipping in industrial environments with elevated safety requirements.
The grate is designed for standard stainless steel troughs used in linear drainage systems. It can be applied in both new installations and during the modernization of existing drainage systems.
Key Benefits:

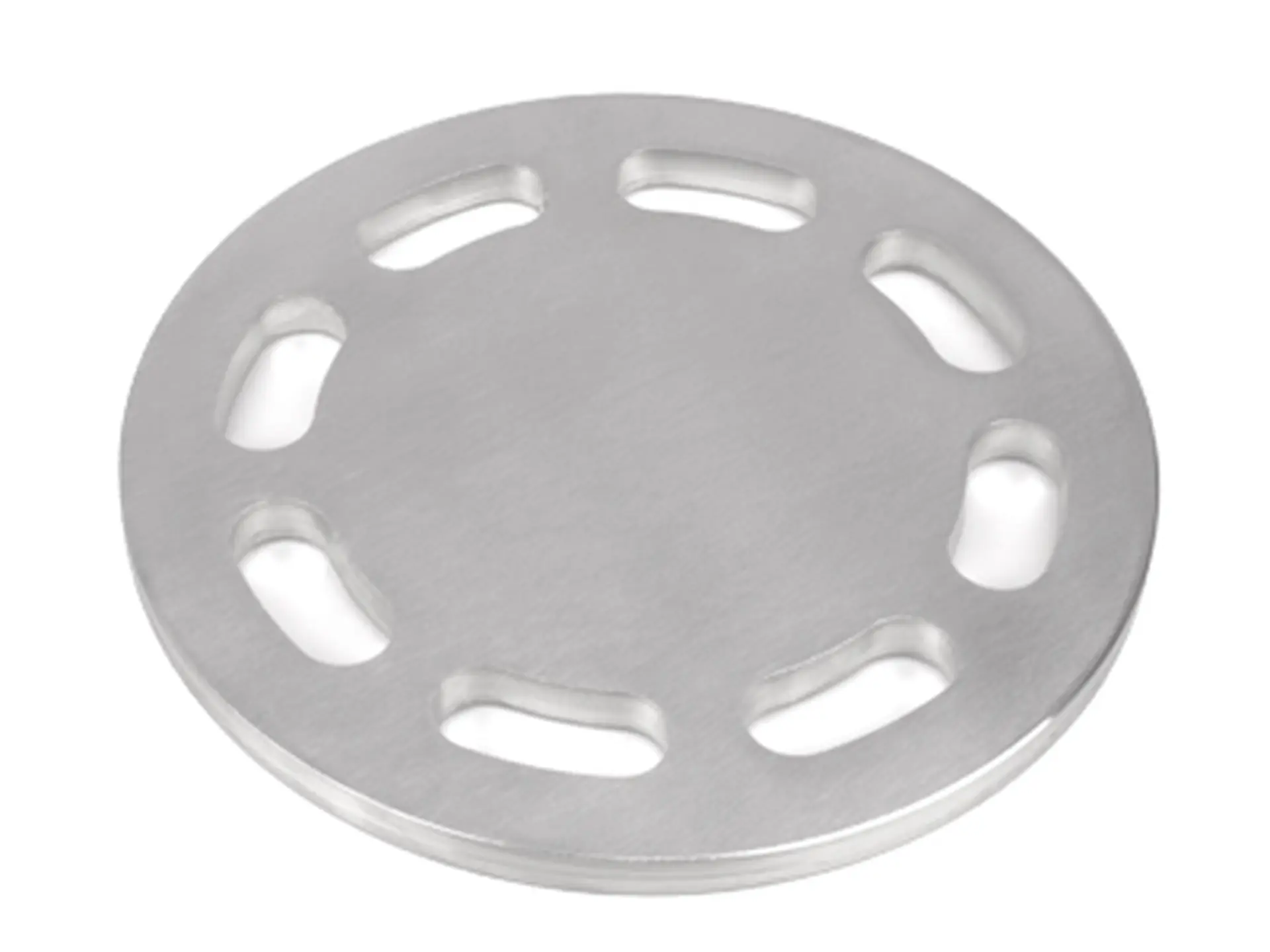

Stainless Steel Plate Cover 25x10 mm provides high surface durability in demanding facilities. It protects drainage systems from larger mechanical contaminants, enhancing their durability and reliability. The solution is made of AISI 304 stainless steel or, upon request, AISI 316, meeting the M125 load class requirements.
The 25x10 mm plate construction is suitable for areas with pallet trucks and small transport carts. It is used in loading zones, warehouses, and technical back areas with high work intensity. Stainless steel covers stand out for their high resistance to point pressure and effectively retain larger contaminants.
Main Features:
Due to their compact design and low permeability, stainless steel plate covers have limited applications. They are not suitable for areas with heavy pedestrian traffic where maximum anti-slip properties are critical. This solution is primarily intended for technical spaces where durability, inspectability, and drainage protection are key.
Applications:

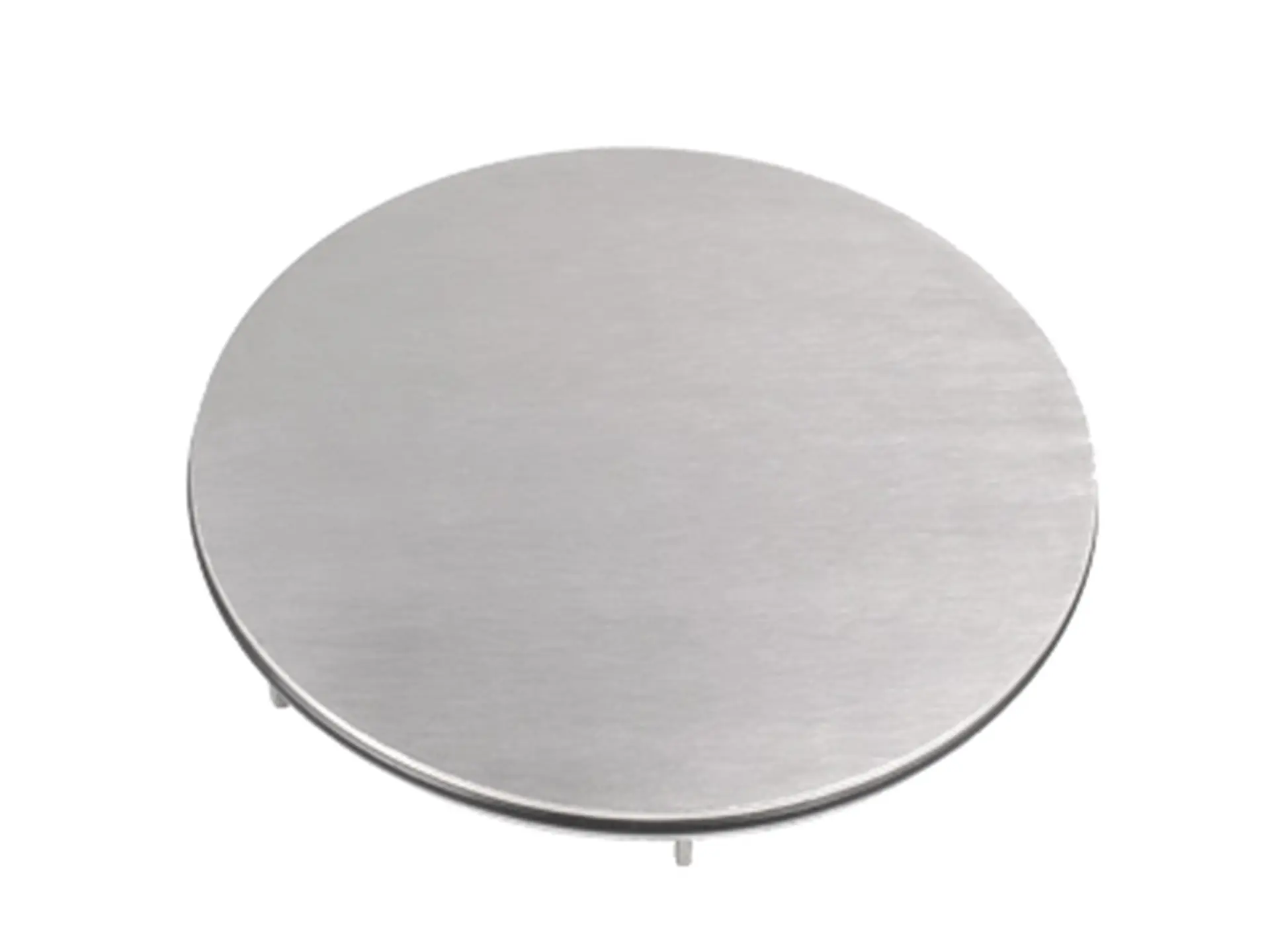

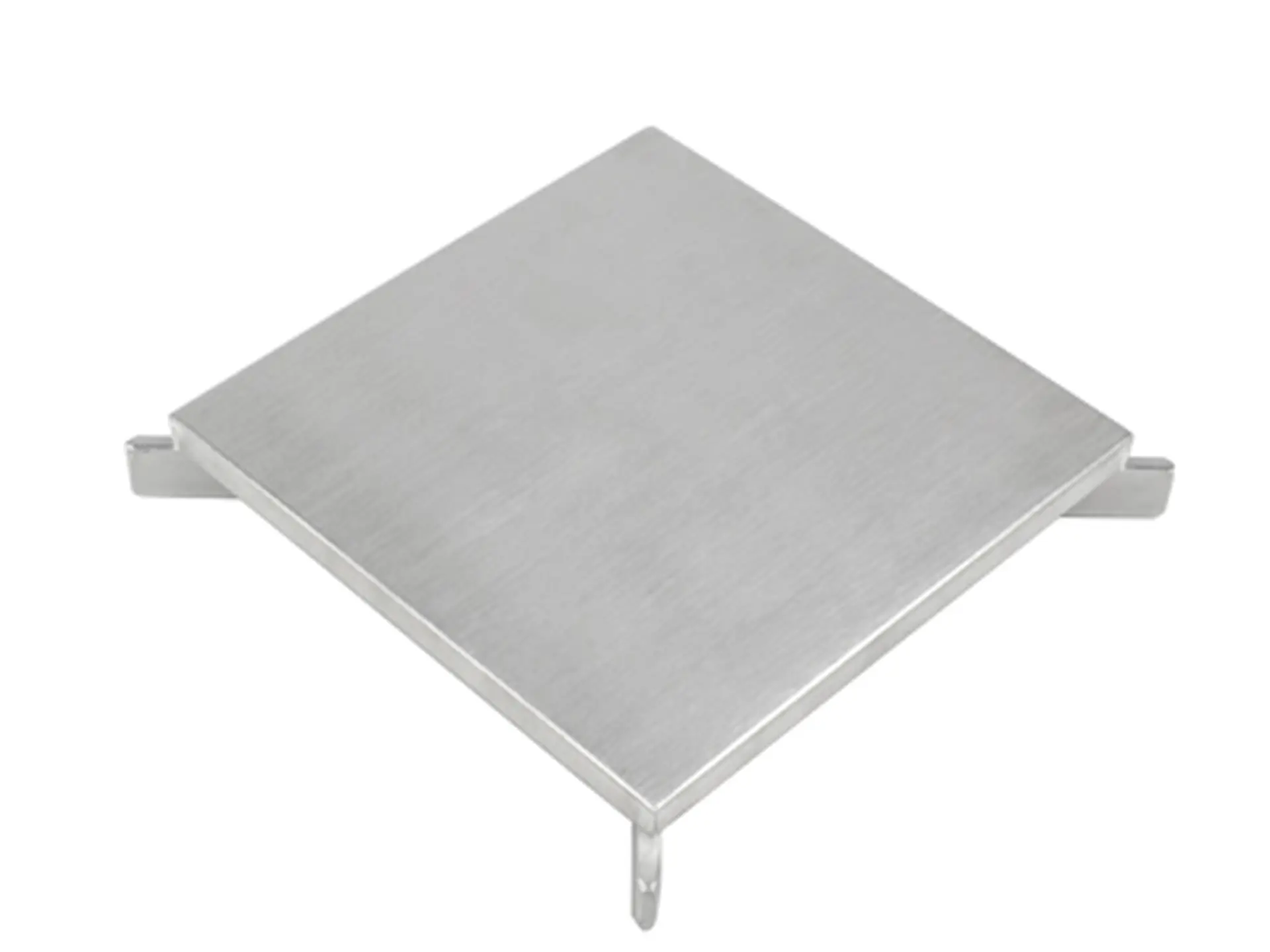

Stainless steel sheet metal covers are an economical and lightweight solution. They are designed for use in areas with low or very low traffic intensity. The product belongs to the L15 load class and is intended for zones with occasional pedestrian movement.
Aesthetics and surface appearance are key factors. Thanks to their simplicity and low weight, sheet metal covers work well as channel covers. They are used in public facilities such as shopping malls, arcades, and office buildings.
They are also applied in representative areas with minimal operational load. The small amount of material used in production translates to an attractive price, making it one of the most cost-effective solutions in this category.
Sheet metal covers are not suitable for loads generated by heavy pedestrian traffic, carts, or technical equipment. In such conditions, they may deform and become slippery due to their smooth surface. However, they offer wide aesthetic possibilities and excel in decorative applications. Thanks to laser cutting technology, custom patterns, graphics, or ventilation holes can be created according to individual customer requirements, combining functionality with aesthetics.

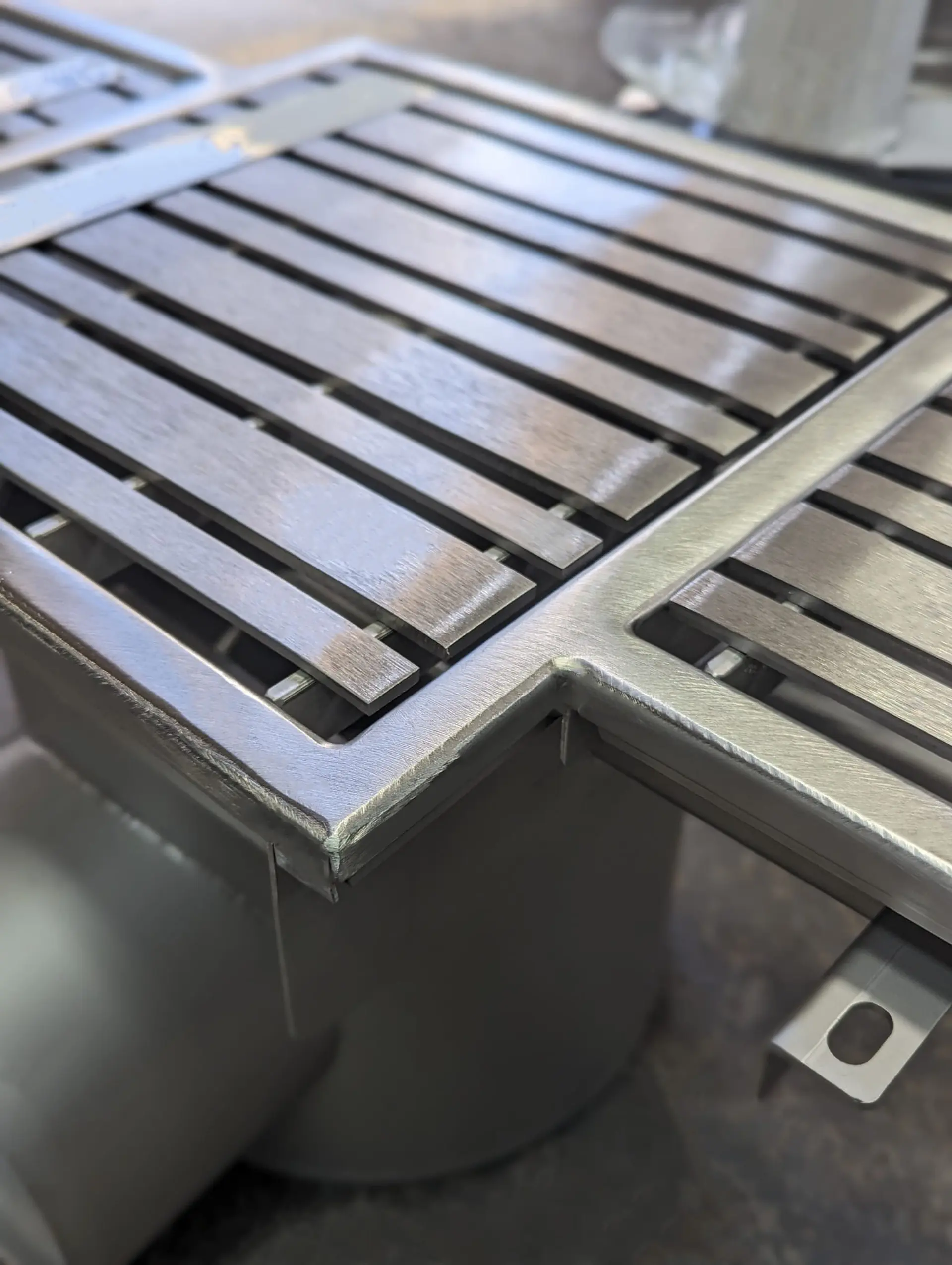

In industrial installations, drainage components often need to be tailored to facility conditions. Therefore, stainless steel covers and grates can be custom-made to meet client specifications. This ensures full compatibility with industrial troughs, stainless steel floor drains (bodenablauf/ablauf), and other drainage elements.
Thanks to the use of AISI 304 or AISI 316 stainless steel, these covers provide corrosion resistance and ease of cleaning. They are characterized by long service life, even in environments with intensive use.
